| 型号 Type | inCube22 |
|---|---|

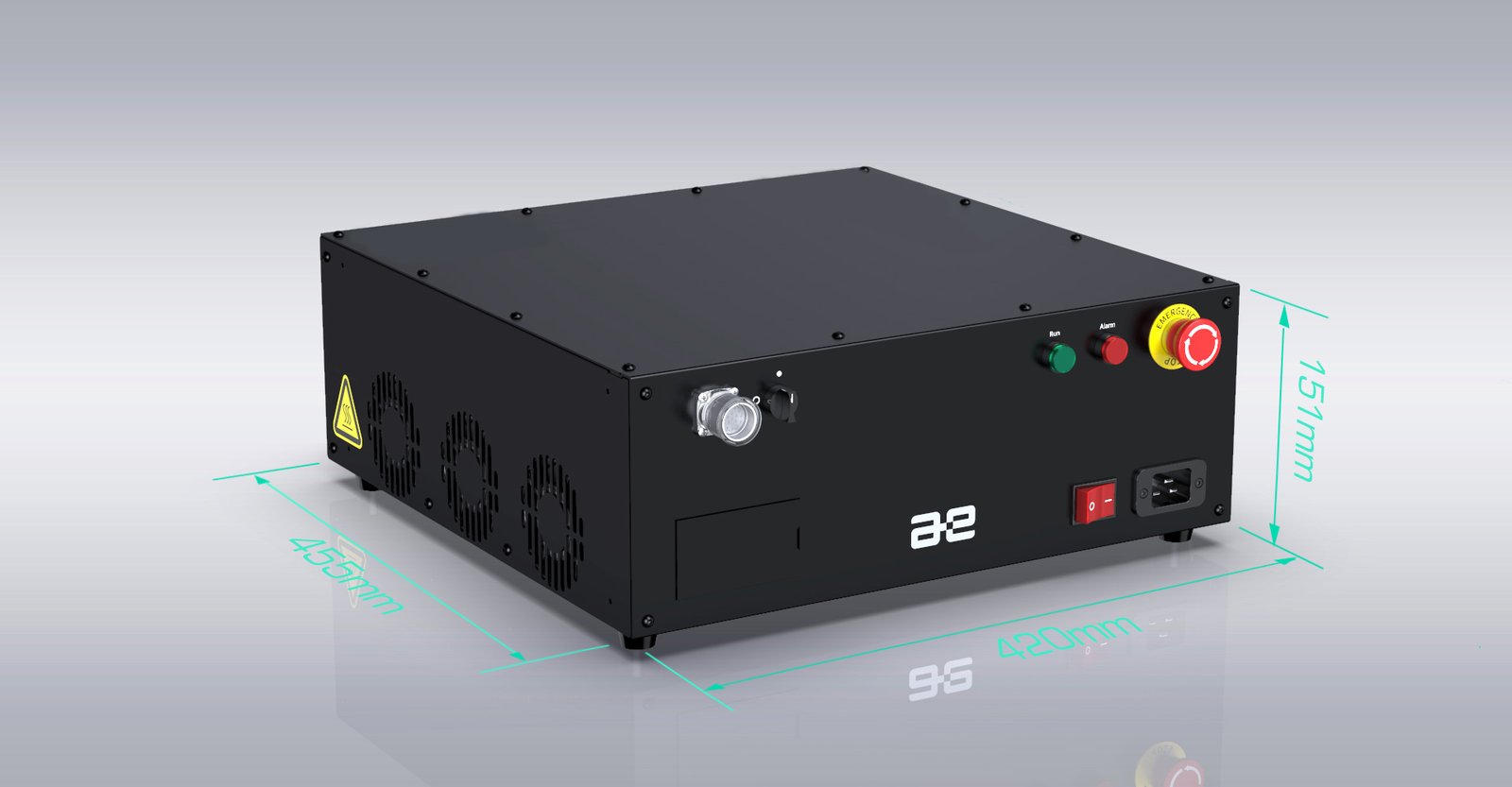

| 尺寸（宽×高×深） Dimension ( Width×Height×Depth ) | 420×151×455(mm) |
| 重量 Weight | 20kg |
| 保护等级 Protection | IP40 |
| 运行环境温度 Temperature range | 0~45°C |
| 输入电源 Power supply | 单相 Single-phase 220VAC -10%~+10% 49~61Hz |
| 最大输入功率 Max. input power | 2.2KVA |
| IO数量 Amount of IO | 26 User DI (PNP&NPN) , 26 User DO (NPN) 18 Safety IO |
| 安全性能等级 Performance Level | PL=d (conform to ISO13849-1) |
The peak output has increased by over 40%.
Smaller size
Compared with the previous generation of control cabinets, the volume is reduced by 42%, more space saving.
Lighter weight
Compared with the previous generation of control cabinet, the weight is reduced by 46%.
